Emulating the
BBC Micro
in Javascript

Matt Godbolt

CppCon 2025

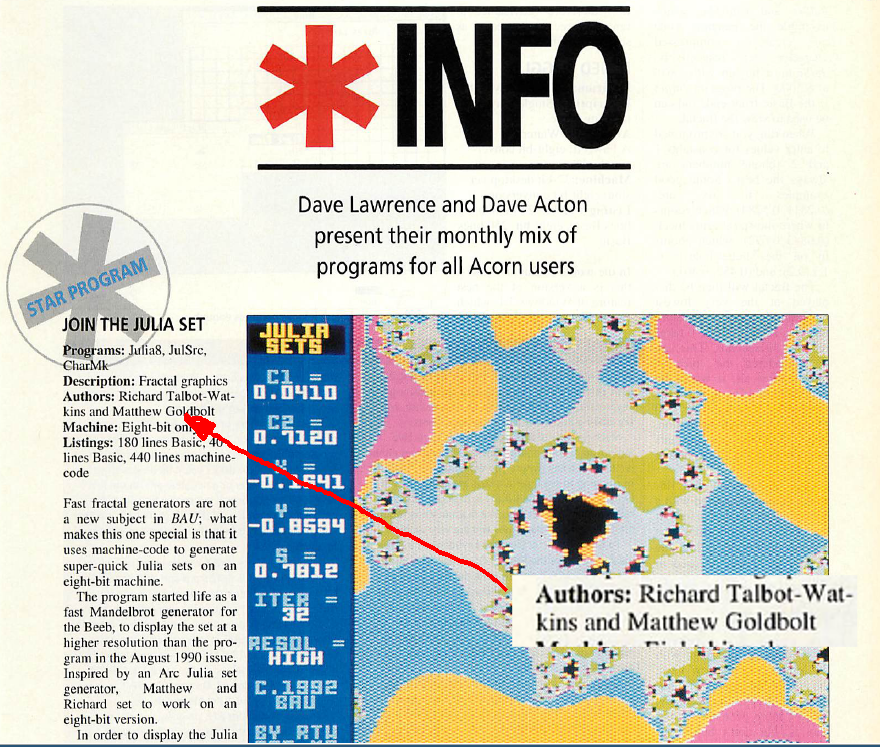

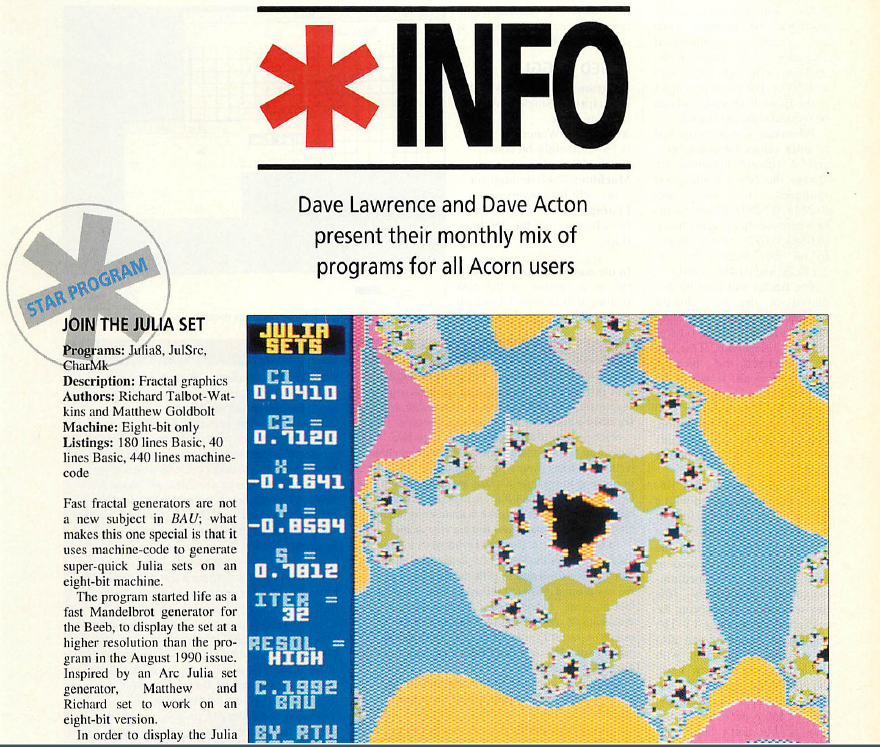

Trying to recapture a lost youth

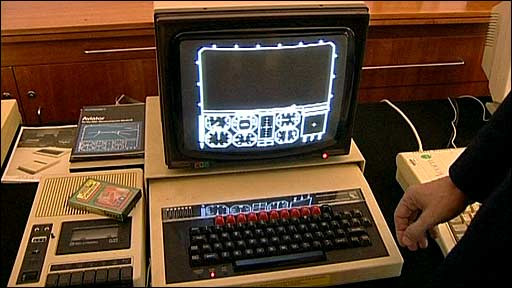

What's a BBC Micro?

Why BBC Micro?

Why Javascript?

The 6502

6502 Computers

6502 101

Registers

• 8-bit Accumulator
• 8-bit X, Y index
• Processor status
• Stack pointer
• Program counter

Instructions

LDA STA LDX ... ; load / store A, X, Y
TAX TXA ...     ; transfer A to X
PHA PLA         ; push A / pull A
CMP             ; compare with A
ADC SBC         ; add / subtract with carry
CLC SEC         ; clear / set carry
JMP             ; jump
BEQ BNE BCS BCC ; branch ==, !=, carry set/clear
BMI BPL ...     ; <0, >=0
JSR             ; jump to subroutine
RTS             ; return from subroutine


Addressing modes

a9 20     LDA #$20     ; A = 0x20

a5 70     LDA $70      ; A = readmem(0x70)

ad 34 12  LDA $1234    ; A = readmem(0x1234)


Addressing modes

bd 34 12  LDA $1234, X ; A = readmem(0x1234 + X)
b9 34 12  LDA $1234, Y ; A = readmem(0x1234 + Y)

b1 70     LDA ($70), Y ; t1 = readmem(0x70)
                       ; t2 = readmem(0x71)
                       ; addr = t1 | (t2<<8)
                       ; A = readmem(addr + Y)

b5 70     LDA $70, X   ; A = readmem(0x70 + X)


Emulating a 6502

• Fetch next instruction
• Decode it
• Execute it

Emulation

var a = 0, x = 0, y = 0, pc = readword(0xfffe);
while (true) {
  switch (readmem(pc++)) {
  case 0xa9: // LDA #imm
    a = readmem(pc++); break;
  case 0xad: // LDA $addr
    var addr = readword(pc); pc += 2;
    a = readmem(addr);
    break;
  // and so on for all other instructions...
  }
}

Except...

• Setting flags
• Memory access
• Hardware
• Interrupts
• Handling time

Processor status: Flags

• Z & N set on ALU/load instruction
• C set by shifts & arithmetic
• V set by arithmetic
• D, V, C and I controlled by special instructions

So now we have:

case 0xa9: // LDA #imm
  a = readmem(pc++);
  p.z = !a;
  p.n = !!(a & 0x80);
  break;

Memory

Memory - Reading

var ram = new Uint8Array(0x8000), romsel = 0, roms = [];
var os = load("OS");
roms[15] = load("BASIC");

function readmem(addr) {
  if (addr < 0x8000) return ram[addr];
  if (addr < 0xc000) return roms[romsel][addr - 0x8000];
  if ((addr >= 0xfe00 && addr < 0xff00)
      || (addr >= 0xfc00 && addr < 0xfd00))
    return readhw(addr);
  return os[addr - 0xc000];
}


Memory - Writing

function writemem(addr, b) {
    if (addr < 0x8000) ram[addr] = b;
    if (addr >= 0xfe00 && addr < 0xff00) writehw(addr, b);
    // else does nothing - it's ROM
}


The outside world

• Video chip:
  • Pixel generator reads from RAM
  • Simple character-mapped mode
  • Bitmap modes with 2, 4, 16 colours
• Sound (SN76489)
• Timers (6522 VIA)

Demo

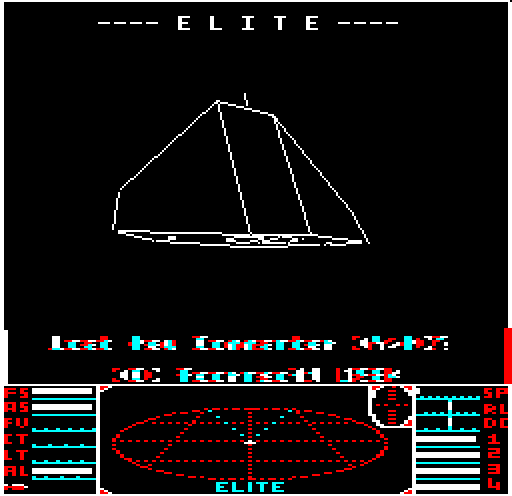

What happened?

Fixing it

case 0xa9: // LDA #imm
  a = readmem(pc++);
  p.z = !a;
  p.n = !!(a & 0x80);
  video.run(2);
  timers.run(2);
  break;

Demo

More games

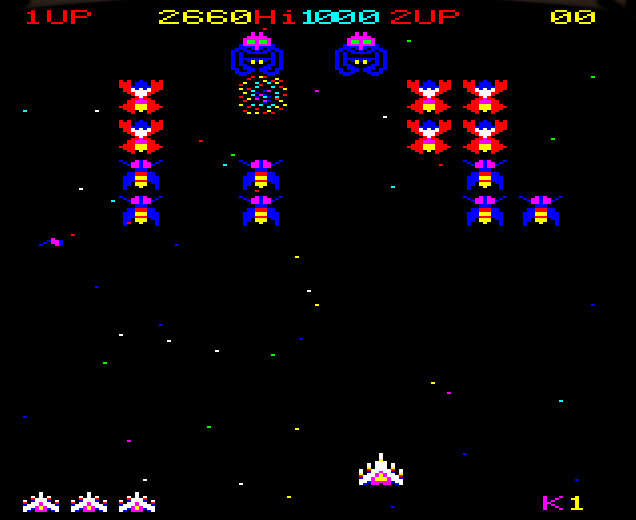

Zalaga

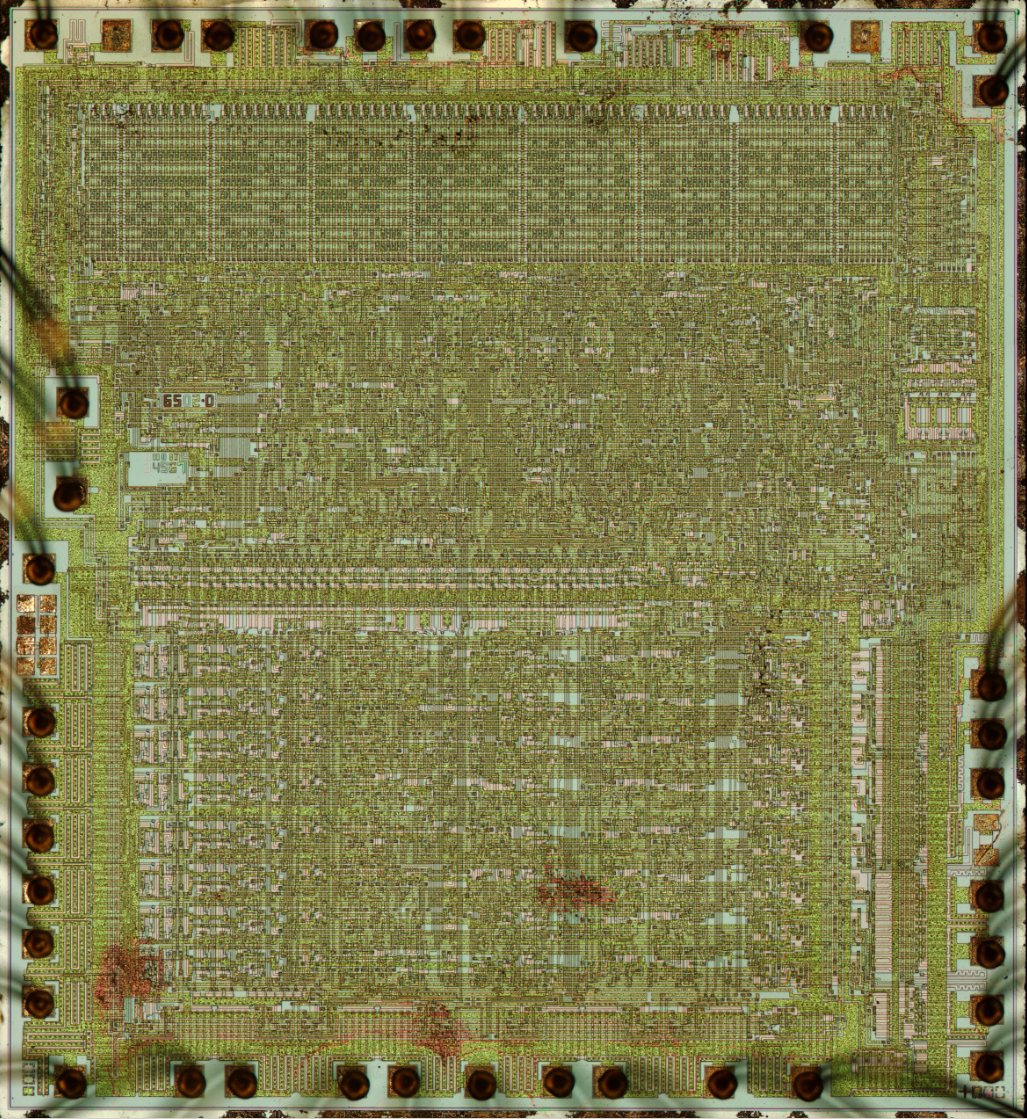

Inside the 6502

$84 10000100	STY zp
$85 10000101	STA zp
$86 10000110	STX zp
$87 10000111	???

Real decoding

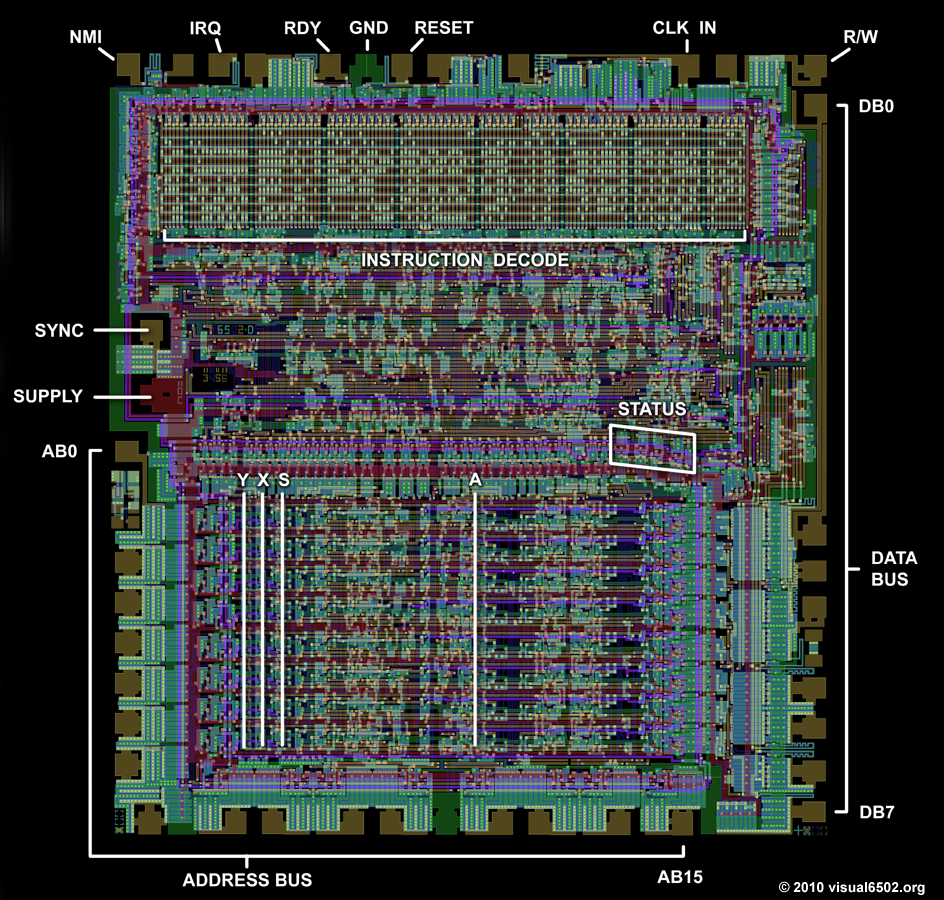

Inside the 6502

Inside the 6502

Inside the 6502

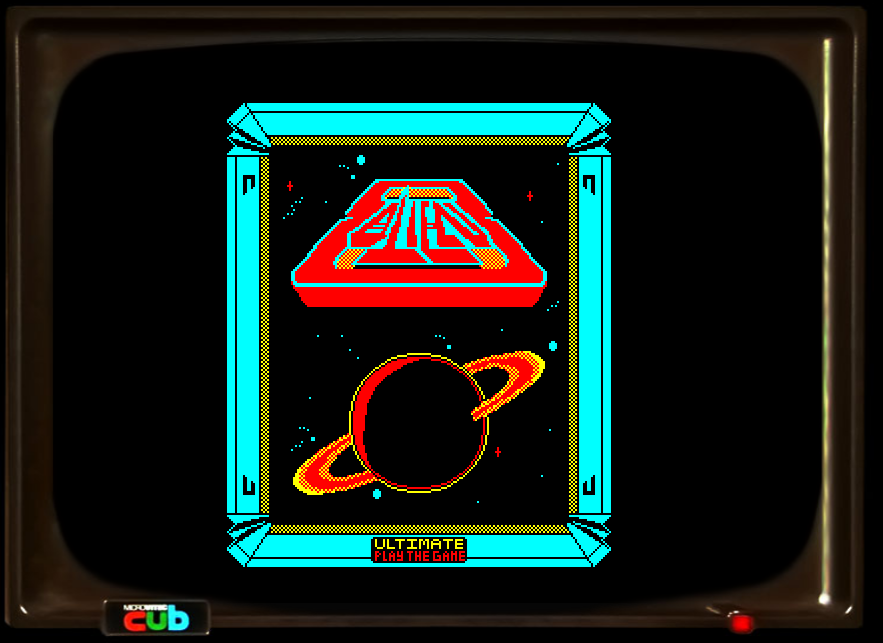

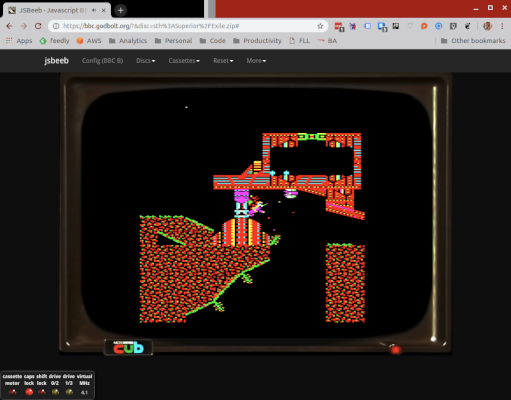

Even more games

An admission

Protection systems

• Decrypt game code
• Keys include:
  • Magic values loaded from tape (or disc)
  • Decryption code itself
  • Hardware timers & registers
  • Interrupt information
  • Read-modify-write

Accurate timing information

Visual 6502

ROL $fe48

Fixing it

case 0x2e: // ROL abs
  addr = readword(pc); pc += 2;
  hardware.run(3);
  val = readbyte(addr);
  hardware.run(1);
  writebyte(addr, val); // unmodified value
  hardware.run(1);
  val = (val << 1) | (carry ? 1);
  carry = val & 0x100;
  writebyte(addr, val & 0xff); // modified value
  hardware.run(1);
  break;

Cycle stretching

Conclusion

Resources

• https://bbc.xania.org/
• Source on github.com/mattgodbolt/jsbeeb
• http://visual6502.org/
• Bitshifters' latest demo

Some Demos

• Stunt Car Racer
• Some Nasty Effects
• The Master
• Bitshifters
