Conversational
Assembly

Matt Godbolt
@mattgodbolt

YOW Tool Time
21st October 2020

Hello!

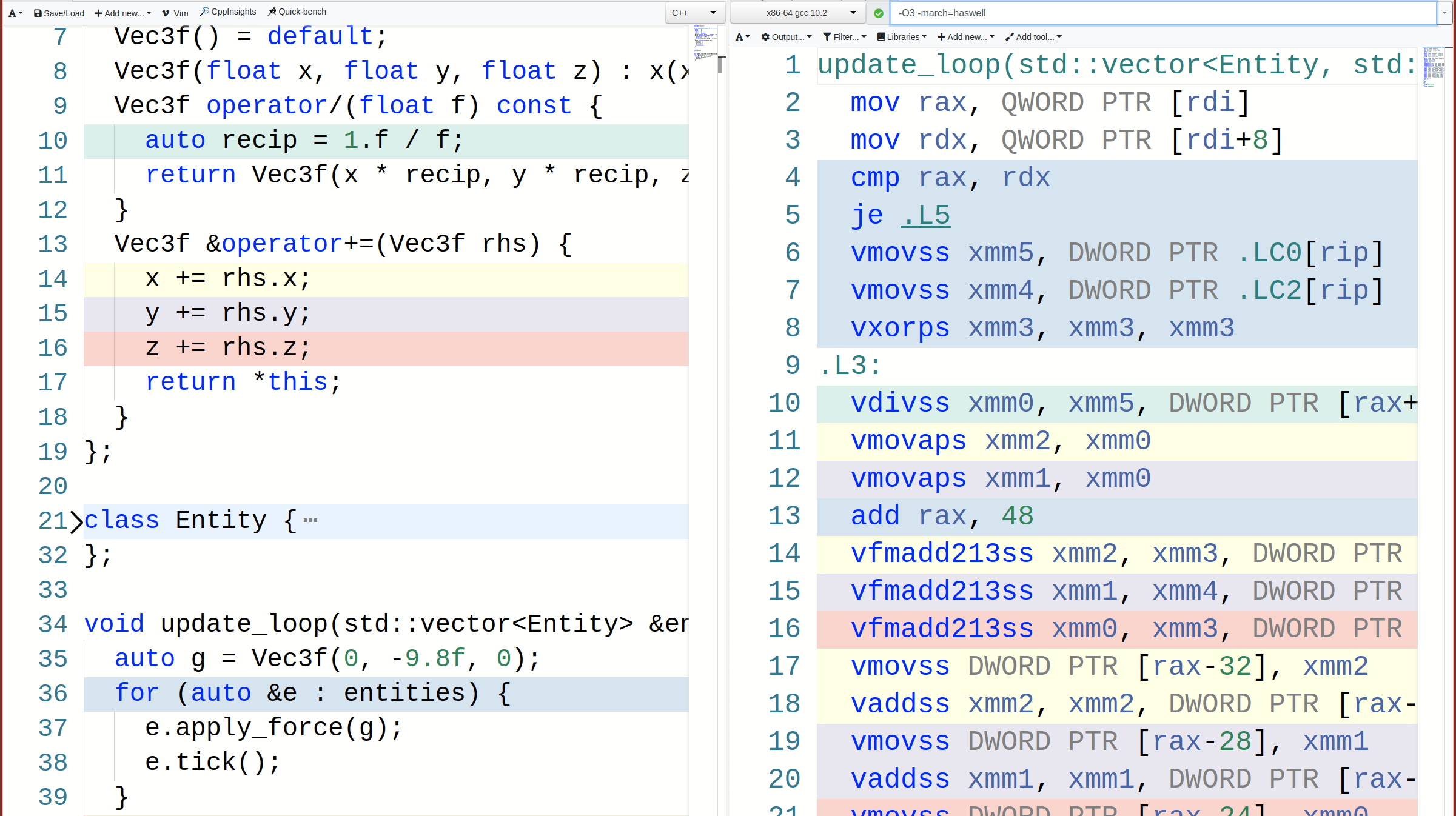

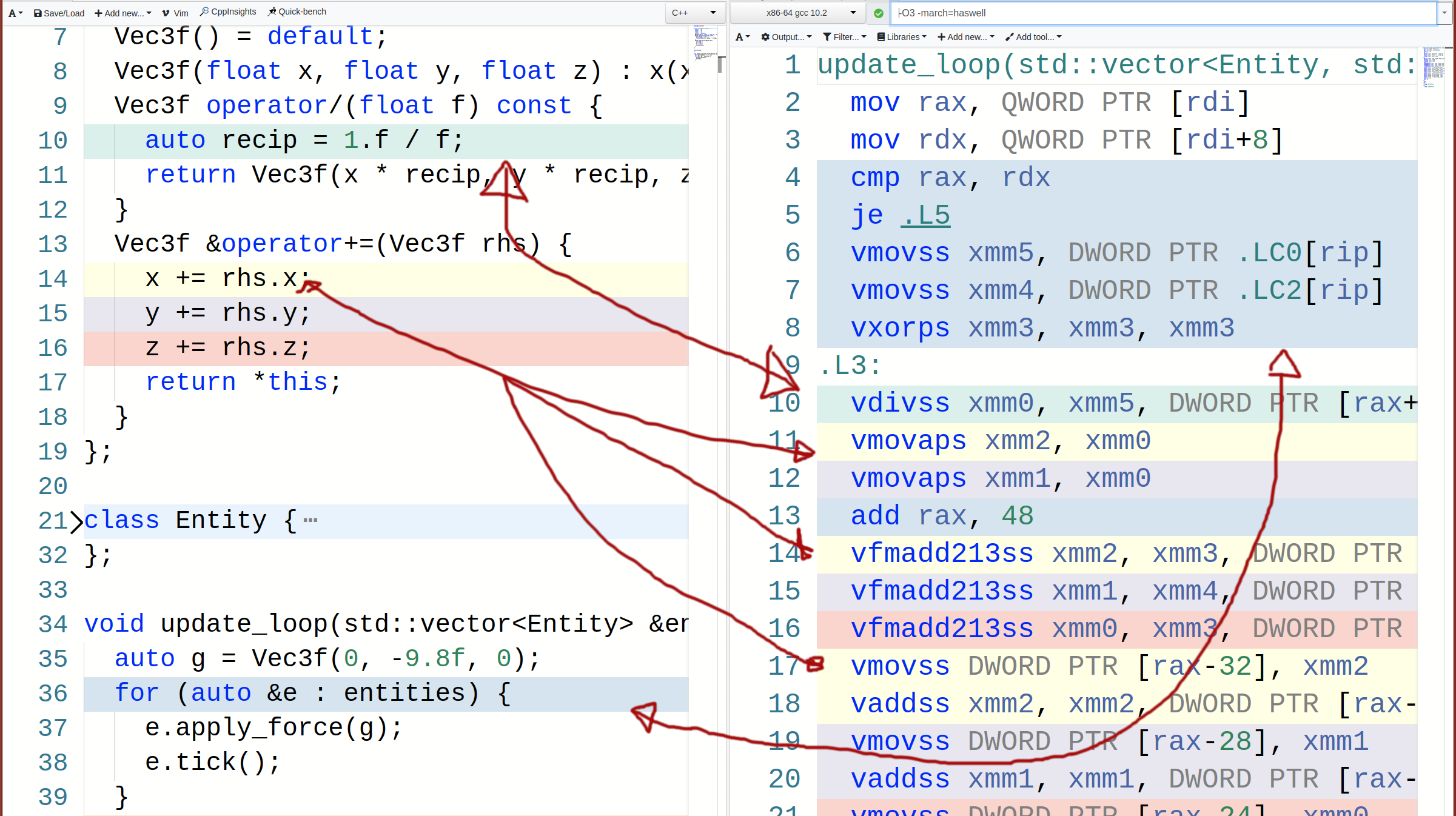

Journey

Backstory

                int sum(const vector<int> &v) {
                  int result = 0;
                  for (size_t i = 0; i < v.size(); ++i)
                    result += v[i];
                  return result;
                }

                int sum(const vector<int> &v) {
                  int result = 0;
                  for (int x : v)
                    result += x;
                  return result;
                }

WARNING

• Reading assembly alone can be misleading
• Always measure too
• Google Benchmark
• quick-bench.com

Conversational x86

Ssolbergj, Wikimedia Commons CC SA 4.0

Instructions

instr
instr dest_operand
instr dest_operand, source_operand
instr dest_operand, source_operand, source_operand


ret                           ; return
inc rax                       ; increment "rax"
mov edx, 1234                 ; set "edx" to the value 1234
add rsi, rdi                  ; "rsi" += "rdi"
vpaddd ymm1, ymm2, ymm0       ; "ymm1" = "ymm2" + "ymm0"


Top 20 Instructions

Registers

• rax, rbx, rcx, rdx, rsp, rbp, rsi, rdi, r8-r15
• xmm0-xmm15, ymm0-zmm15, zmm...
• rdi, rsi, rdx... arguments (SYSV ABI)
• rax is return value

Registers

Operands

  register                          ; e.g. rax, rbx, ecx...
  constant                          ; e.g. 1234
  <size> ptr [register]             ; e.g. DWORD PTR [rax]
  <size> ptr [register + offset]    ; e.g. BYTE PTR [rcd + rsi]
  <size> ptr [register + offset + register2 * (1,2,4,8)]


  mov eax, dword ptr [rdi + 12 + rsi * 4]
                                    ; eax = *(int *)(rdi + 12 + rsi * 4)


  add eax, dword ptr [rdi + 12 + rsi * 4]
                                    ; eax += *(int *)(rdi + 12 + rsi * 4)


  lea eax, [rdi + 12 + rsi * 4]     ; eax =          (rdi + 12 + rsi * 4)


Summary

• Registers: rax, rbx, rcx ...
• Params: rdi, rsi, rdx, rcx ...
• Result: rax
• op dest, src
• dest, src are registers or memory

Where were we?

                int sum(const vector<int> &v) {
                  int result = 0;
                  for (size_t i = 0; i < v.size(); ++i)
                    result += v[i];
                  return result;
                }

                int sum(const vector<int> &v) {
                  int result = 0;
                  for (int x : v)
                    result += x;
                  return result;
                }

Demo

/// g83:-O2 -march=skylake -std=c++2a -Wall -Wextra -pedantic
// setup
  #include <numeric>
  #include <vector>
  using namespace std;

int sum(const vector<int> &v) {
  int result = 0;
  for (size_t i = 0; i < v.size(); ++i)
    result += v[i];
  return result;
}

Walkthrough

int sum(const vector<int> &v) {


  ; rdi = const vector<int> *
  mov rdx, QWORD PTR [rdi]   ; rdx = *rdi     ≡ begin()
  mov rcx, QWORD PTR [rdi+8] ; rcx = *(rdi+8) ≡ end()


template<typename T> struct _Vector_impl {
  T *_M_start;
  T *_M_finish;
  T *_M_end_of_storage;
};


Walkthrough

; rcx ≡ end, rdx = begin, eax = 0
.L3:
  add eax, DWORD PTR [rdx]    ; eax += *(int*)rdx
  add rdx, 4                  ; rdx += sizeof(int)
  cmp rdx, rcx                ; is rdx == end?
  jne .L3                     ;   if not, loop
  ret                         ; we're done


So, which approach is best?

More examples

Multiplication

int mulByY(int x, int y) {
  return x * y;
}


mulByY(int, int):       ; multiply edi with esi, and put result in eax
  mov eax, edi          ; eax = edi
  imul eax, esi         ; eax *= esi
  ret


Multiplication

    1101    (13)
  x 0101     (5)
--------
    1101
   00000
  110100
+0000000
--------
01000001    (65)

Multiplication

int mulByConstant(int x) { return x * 2; }


Multiplication

int mulBy65599(int a) {
  return (a << 16) + (a << 6) - a;
  //         ^          ^
  //     a * 65536      |
  //                  a * 64
  // 65536a + 64a - 1a = 65599a
}

Counting bits

/// g83:-O2 -std=c++2a -march=haswell
int countSetBits(unsigned int a) {
  int count = 0;
  while (a) {
    count++;
    a &= (a-1);
  }
  return count;
}


Multiple ifs

bool isWhitespace(char c) {
  return c == ' '
    || c == '\r'
    || c == '\n'
    || c == '\t';
}


Multiple ifs

isWhitespace(char c):
  xor eax, eax
  cmp dil, 32       ; if c > 32 return false;
  ja .L1
  ;         3                  1  1
  ;         2     ......       3  09876543210
  ; rax = 0b100000000000000000010011000000000
  ; ' ' = 32, '\r' = 13, '\n' = 10, '\t' = 9
  movabs rax, 4294977024
  shrx rax, rax, rdi
  and eax, 1        ; return (rax >> c) & 1;
.L1:
  ret

Vectorisation

/// g102:-O3 -std=c++20 -march=haswell
// setup
  #include <numeric>
  #include <vector>
  using namespace std;

int sum(const vector<int> &v) {
  int result = 0;
  for (int x : v)
    result += x;
  return result;
}

Vectorization

.L4:
vpaddd ymm1, ymm1, YMMWORD PTR [rax]
add rax, 32
cmp rax, rcx
jne .L4


vpaddd ymm1, ymm1, YMMWORD PTR [rax]

Autovectorisation

/// clang1001:-O3 -march=skylake -std=c++20 -Wall -Wextra -pedantic
// setup
  #include <vector>
  #include <cstdlib>
  #include <array>
  using namespace std;
///hide

inline array<int, 8> vpaddd_instruction(
  array<int, 8> lhs,
  const int *rhs) {
  array<int, 8> res;
  for (auto i = 0; i < 8; ++i)
    res[i] = lhs[i] + rhs[i];
  return res;
}

int sum(const vector<int> &v) {
  int res = 0;
  size_t index = 0;

  if (v.size() >= 8) {
    ///unhide
    array<int, 8> sub_totals = {0,0,0,0,0,0,0,0};

    for (; index < v.size(); index += 8)
      sub_totals = vpaddd_instruction(sub_totals, &v[index]);

    res = sub_totals[0] + sub_totals[1] + sub_totals[2] + sub_totals[3]
        + sub_totals[4] + sub_totals[5] + sub_totals[6] + sub_totals[7];
    ///hide
  }

  for (; index < v.size(); ++index)
    res += v[index] * v[index];

  return res;
}


Conclusion

Conclusion

• Write code for humans
• Let the compiler write the GOTOs
• Trust your compiler
• ...but learn how to verify

Thanks!
